reducing adaptor bspp male 60° cone- bspp female

Back to category:

Module connector for connections in hydraulic systems, produced with turning cold-drawn steel material 11SMnPb37, protective treatment with white zinc.

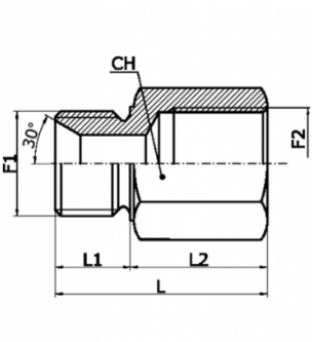

Code Ø F1 Ø F2 L L1 L2 CH Packaging (num. pieces)
CM003621 1/8 1/4 29 8 21 19 250
CM003825 3/8 1/4 38 13 25 22 250
CM003826 1/4 3/8 36 11 25 22 250
CM004125 1/2 3/8 39 14 25 27 200
CM004126 3/8 1/2 38 13 25 27 200
CM004635 3/4 1/2 51 16 35 32 100
CM004636 1/2 3/4 49 14 35 32 100
CM005140 1" 3/4 58 18 40 40 50
CM005141 3/4 1" 56 16 40 40 50
